XIR P3688
Simple and affordable, the XiR P3688 portable two-way analog/digital radio connects your workforce efficiently—and has the flexibility to grow with your business. By combining the best of two-way radio functionality with the latest analog and digital technology, the XiR P3688 is perfect for the everyday user who wants to stay connected.Fully compatible with the MOTOTRBO family of radios, the XiR P3688 has superior audio quality, outstanding coverage, long-lasting battery life and more.
Whatever your needs, the XiR P3688 provides a simple, reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right. Improve the efficiency of your operation with easy-to-use voice communication that’s right for you.
| Brand | Motorola |
|---|---|
| Channel Capacity | 16 |
| Channel Spacing | 12.5 kHz / 20 kHz / 25 kHz2 |
| Frequency | 136-174 MHz |
| Typical RF Output | -40 dB 12.5 kHz / -45 dB 20/25 kHz2 |
| Hum and Noise | -40 dB 12.5 kHz / -45 dB 20/25 kHz2 |
| Audio Response | TIA603D |
| Conducted Spurious Emissions | -57 dBm |
| Transmitter Frequency | 136-174 MHz |
| Radio Dimensions | 5.0 x 2.4 x 1.7 in (127.7 x 61.5 x 42.0 mm) (H x W x D) |
| Weight with battery | 14.3 oz (406 g),12.1 oz (341 g),12.2 oz (346 g) |
| Nominal Voltage | 7.5 V |
| FCC Description | ABZ99FT3092 |
| IC Description | 109AB-99FT3092 |
| Average Battery Life | Analog 9-14.5 hrs / Digital 11.5-18.5 hrs |
| Receiver Frequency | 136-174 MHz |
| Rated Audio | 0.5 W |

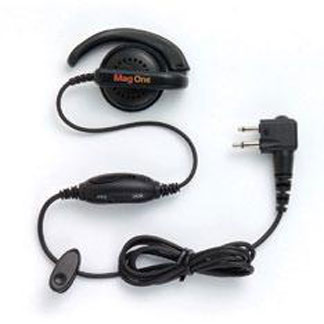

 | Mag One - PMLN6531 Two-way Radio Accessories The Mag One - PMLN4443 is a commercial series over-the-ear receiver with an in-line microphone/PTT/VOX switch. |

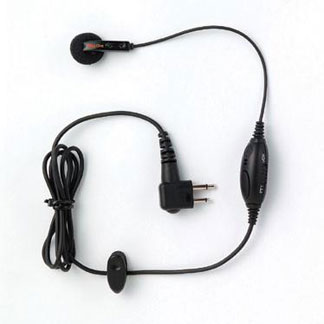

 | Mag One - PMLN6534 Two-way Radio Accessories Commercial series earbud with in-line microphone/PTT/VOX switch |

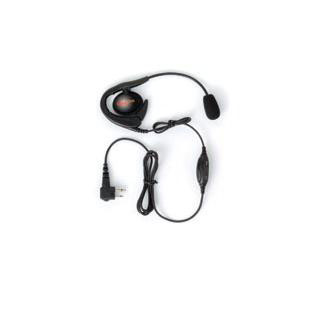

 | Mag One – PMLN6537 Two-way Radio Accessories The Mag One – PMLN6537 is a commercial series earset with over-the-ear styling, boom microphone and in-line PTT/VOX switch. |

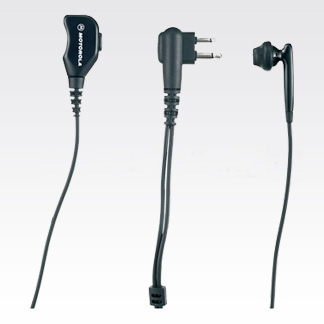

 | PMLN6530 Two-way Radio Accessories 2-wire surveillance kit with translucent tube. |
 | PMLN6533 Two-way Radio Accessories Pellet-style earpieces allow users to receive communication discreetly. This earpiece comes with with the microphone and Push-to-Talk combined. |
| | PMLN6535 Two-way Radio Accessories This pellet-style earpiece allows users to receive communication discreetly and is comfortable for extended-wear use. |

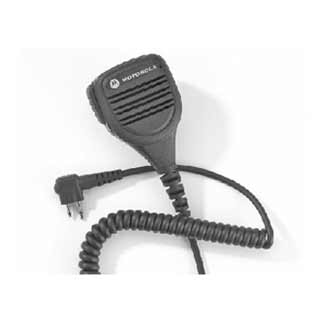

 | PMMN4029 Two-way Radio Accessories Remote Speaker Microphone without Audio Jack (IP57) Dual Pin. The RSM incorporates both wind porting technology and waterproof capability. The IP57 submersible RSM is tested at 1 meter for 30 minutes which is ideal for outdoor radio communication in wet conditions. |
| | PMMN4092 Two-way Radio Accessories The Remote Speaker Microphone is a water-resistant compact unit that allows talking and listening without removing the radio from the belt or case. |

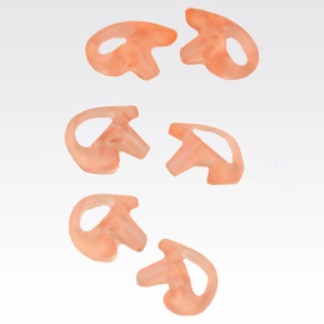

 | RLN4761 - Clear, Comfortable Earpiece Two-way Radio Accessories Medium Clear Comfortable Earpiece, right ear |
| | RLN4762 - Clear, Comfortable Earpiece Two-way Radio Accessories Large Clear Comfortable Earpiece, right ear |
| | RLN4763 - Clear, Comfortable Earpiece Two-way Radio Accessories Small Clear Comfortable Earpiece, left ear |
| | RLN4765 - Clear, Comfortable Earpiece Two-way Radio Accessories Large Clear Comfortable Earpiece, left ear |

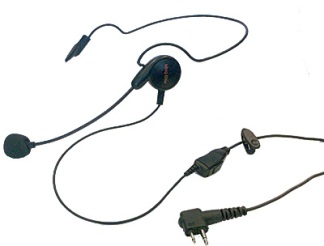

 | PMLN6542 Audio Accessories The Mag One – PMLN5808 is a commercial series behind-the-head-style receiver with boom microphone and in-line PTT switch. |
| | REX4648 Audio Accessories Replacement foam earpad and windscreen kit for BDN6773A, HMN9013B and RMN4016B. |
 | RLN4941 Audio Accessories Receive-Only Earpiece with translucent tube and rubber eartip |

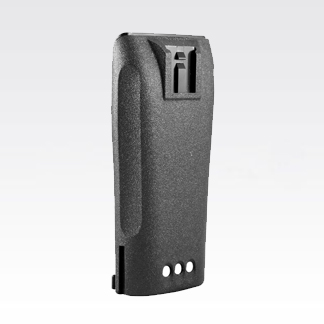

 | Mag One - PMNN4458 Batteries Mag One Li-Ion 2050 mAh battery. Mag One batteries provide an affordable, dependable solution to power your radios. |
| | NNTN4497BR -2250 mAh Li-ion battery Batteries Premium Lithium Ion (Li-ion) Battery. |

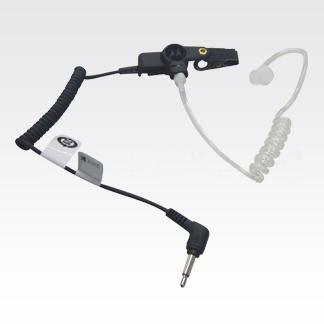

 | PMLN4620 Earpieces D-SHELL Receive-Only Ear-Receiver (with 3.5mm plug). The Over-the-ear D-Shell earpiece that attaches to the RSM, allows user to receive in-coming radio communications discretely. |

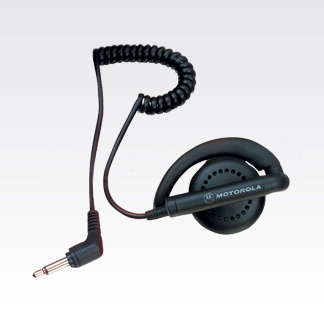

 | WADN4190 Earpieces Receive-Only Flexible Earpiece. |

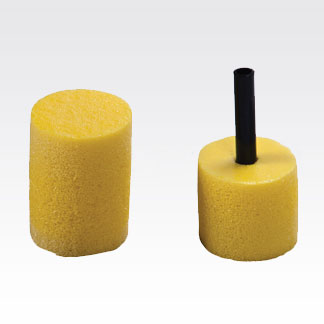

 | 5080384F72 Surveillance Accessories Replacement foam plugs. Noise reduction = 24dB Pack of 50. For RLN6230A/RLN6231A. |

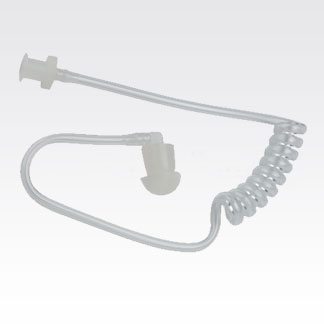

 | RLN6242 Surveillance Accessories Quick disconnect acoustic tube replacement |
