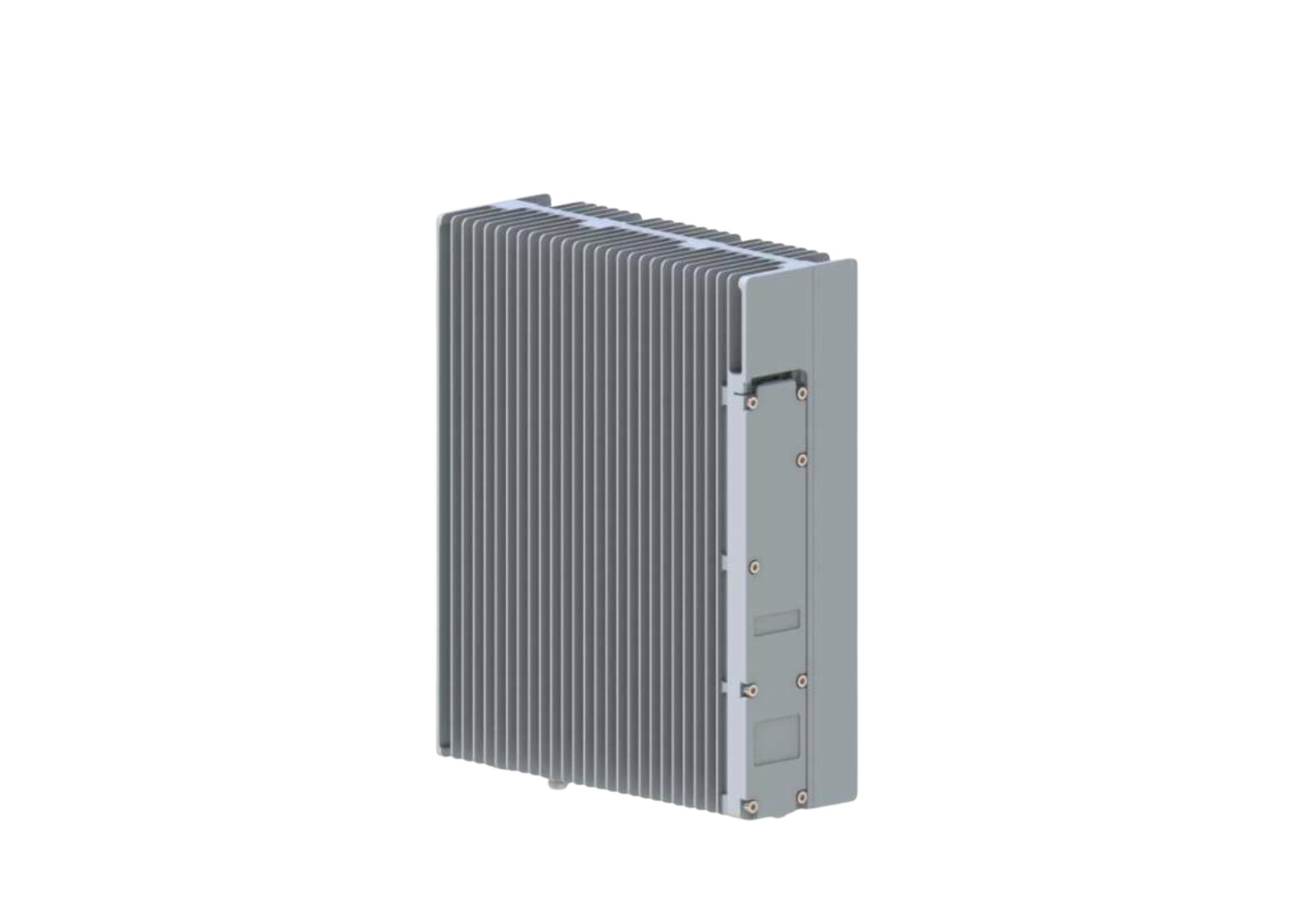

CONVEY gNB1-5G
| SYSTEM FUNCTIONS | |
| Standard | 3GPP R15 |
| Number of Cells | 1 x 2T2R |
| Cell Capacity |
Up to 140 connected users per cell Up to 280 registered users per cell |
| Typical Cell Throughput |
DL: 200 Mbps, UL: 100 Mbps (20MHz BW) DL: 380 Mbps, UL: 200 Mbps (40MHz BW) |
| Operating Frequency Band | UL: 703-748MHz/DL: 758-803MHz |
| Channel Bandwidth | 10MHz/20MHz/40MHz |
| RF Power | 2x40W |
| Duplex Mode | FDD |
| Subcarrier | 15/30 kHz |
| Clock Synchronization | GPS, 1588V2 clock synchronization |
| Power Supply | -48V DC (-36V ~~ -57V) |
| Power Consumption | <350W |
| HARDWARE INTERFACE | |
| Fronthaul/Backhaul Interface | 10G SFP + optical port |
| DEBUG/RGPS Interface | Cable port |
| Power Input | Waterproof Aviation Plug |
| Tx/Rx Interface ANTI -ANT4 | 4.3-10 Type |
| GPS Antenna Connector | GPSN |
| STRUCTURE PARAMETERS | |
| Total Weight | <18 kg | 39.68 lbs |
| Dimension | 445mmx360mmx125mm | 17.52x14.17x4.921 In |
| Installation Method | Supports pole/hanging/wall installation |
| ENVIRONMENTAL SPECIFICATIONS | |
| Protection Level | IP65 |
| Operating Temperature |
-40°C ~ +55°C | -40°F ~ + 131°F (without solar radiation) -40°C ~ +50°C | -40°F ~ + 122°F (with solar radiation) |
| Working Humidity | 5% ~ 95% |
| Working Pressure | 70kPa ~ 106kPa |
