XIR M3688
Stay connected with your workers whether they’re delivering cargo, dispatching trucks or driving a school bus. The MOTOTRBO XiR M3688 mobile radio (with alphanumeric display) is a reliable, cost-efficient solution to keep your team in contact so they can communicate, coordinate and collaborate for maximum efficiency and safety. The XiR M3688 is designed for the everyday driver, so you can connect without distraction.
This analog/digital mobile radio offers all the benefits of the latest technology – from superior audio quality to greater coverage. It’s also compatible with advanced MOTOTRBO business-essential features, such as transmit-interrupt (decode only) to prioritize critical communication. The bright, high-contrast alphanumeric display allows drivers to see important information such as settings and caller ID at a glance.
The XiR M3688 is easy to use and delivers clear communication for maximum efficiency of your operation. MOTOROLA also offers the MOTOTRBO XiR M3188 mobile radio with numeric display.
| General | ||
|---|---|---|
| VHF | UHF | |
| Channel Capacity | 160 | |
| Typical RF Output | ||
| Low Power | 1-25 W | 1-25 W |
| High Power | 25-45 W | 25-45 W |
| Frequency | 136-174 MHz | 403-438 MHz / 403-470 MHz |
| Dimensions (H x W x L) | 1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm) | |
| Weight | 2,9 Ibs (1.3 kg) | |
| Current Drain Standby Rx @ Rated Transmit | 0.81 A max 2 A max 1-25 W: 11.0 A max 25-45 W: 14.5 A max | 0.81 A max 2 A max 1-25 W: 11.0 A max 25-40 W: 14.5 A max |
| FCC Description | 1-25 W: ABZ99FT3090 25-45 W: ABZ99FT3091 | 1-25 W: ABZ99FT4092 25-40 W: ABZ99FT4093 |
| RECEIVER | ||
| Frequency | 136-174 MHz | 403-438 MHz / 403-470 MHz |
| Channel Spacing | 12.5 kHz / 25 kHz | |
| Frequency Stability (-30°C, +60°C, +25°C Ref) | ± 0.5 ppm | |
| Analogue Sensitivity (12 dB SINAD) Typical | 0.3 uV (0.22 uV typical) | |
| Digital Sensitivity (5% BER) | 0.25 uV (0.19 uV typical) | |
| Intermodulation (TIA603D) | 75 dB | 70 dB |
| Adjacent Channel Selectivity (TIA603D) | 50 dB @ 12.5 kHz 75 dB @ 25 kHz | 50 dB @ 12.5 kHz 70 dB @ 25 kHz |
| Spurious Rejection (TIA603D) | 75 dB | 70 dB |
| Rated Audio | 4 W (Internal) 7.5 W (External - 8 ohms) 13 W (External - 4 ohms) | |
| Audio Distortion @ Rated Audio | 3% (typical) | |
| Hum and Noise | -40 dB @ 12.5 kHz / -45 dB @ 25 kHz | |
| Audio Response | TIA603D | |
| Conducted Spurious Emissions (TIA603D) | -57 dBm | |
| Transmitter | ||
| Frequency | 136-174 MHz | 403-438 MHz / 403-470 MHz |
| Channel Spacing | 12.5 kHz / 25 kHz | |
| Frequency Stability (-30°C, +60°C, +25°C Ref) | ± 0.5 ppm | |
| Low Power Output | 1-25 W | |
| High Power Output | 25-45 W | 25-40 W |
| Modulation Limiting | ± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kHz | |
| FM Hum and Noise | -40 dB @ 12.5 kHz / -45 dB @ 25 kHz | |
| Conducted / Radiated Emission | -36 dBm < 1 GHz / -30 dBm > 1 GHz | |
| Adjacent Channel Power | 60 dB @ 12.5 kHz / 70 dB @ 25 kHz | |
| Audio Response | TIA603D | |
| Audio Distortion | 3% | |
| FM Modulation | 12.5 kHz: 11K0F3E 25 kHz: 16K0F3E | |
| 4FSK Digital Modulation | 12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination of 12.5 kHz Voice and Data: 7K60F1W | |
| Digital Vocoder Type | AMBE +2™ | |
| Digital Protocol | ETSI TS 102 361-1, -2, -3 | |

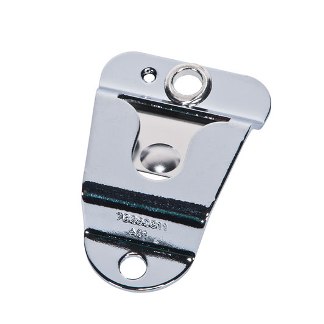

 | HLN9073 - Telephone-Style Handset with Cup and Hardware Two-way Radio Accessories This microphone hang-up clip is compatible with all Motorola microphones. It mounts in vehicle to secure a mobile microphone. Installation is required. |

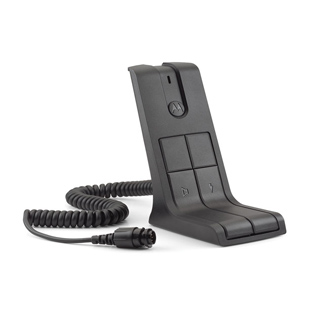

 | PMMN4098A Two-way Radio Accessories This is a convenient desktop microphone option for control station users. |

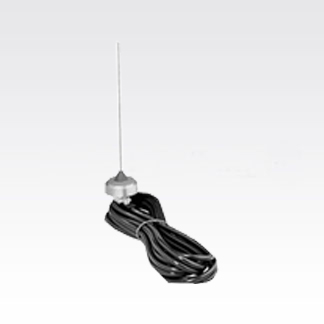

 | RAD4198 - BNC 136-144Mhz, 1/4 Wave Roof Mount Antennas This is a BNC 136-144Mhz, 1/4 Wave Roof Mount antenna |

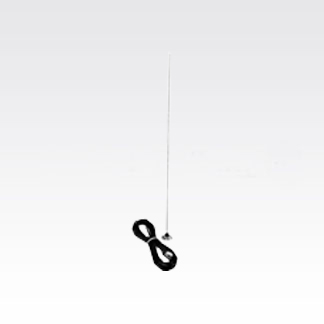

 | RAE4151 - BNC 403-430Mhz, 1/4 Wave Roof Mount Antennas This is a BNC 403-430Mhz, 1/4 Wave Roof Mount antenna |

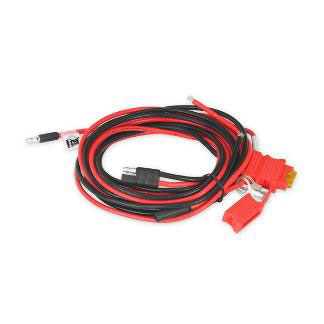

 | HKN4191 Two-way Radio Control Station Accessories 10-foot, 20-amp cables to power battery. |

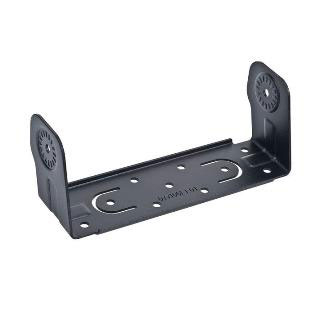

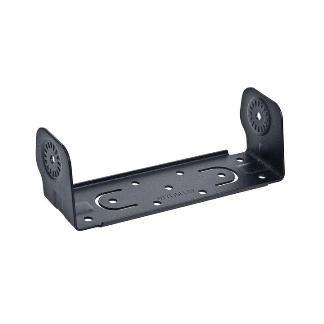

 | RLN6466 Two-way Radio Control Station Accessories This low-profile trunnion kit includes a mounting bracket for under-dash installation. |
 | RLN6467 Two-way Radio Control Station Accessories This high-profile trunnion kit includes a mounting bracket for under-dash installation with extra clearance for tilting radio. |

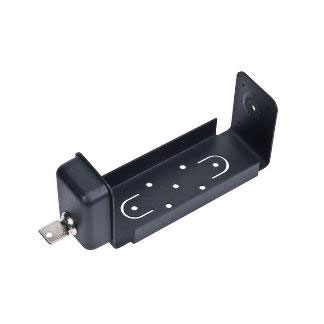

 | RLN6468 Two-way Radio Control Station Accessories This key lock trunnion kit allows you to lock a radio in a vehicle for extra protection. |

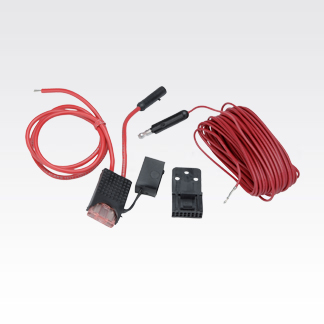

 | HKN9327 - Ignition Switch Cable Mounts Ignition Switch Cable |
